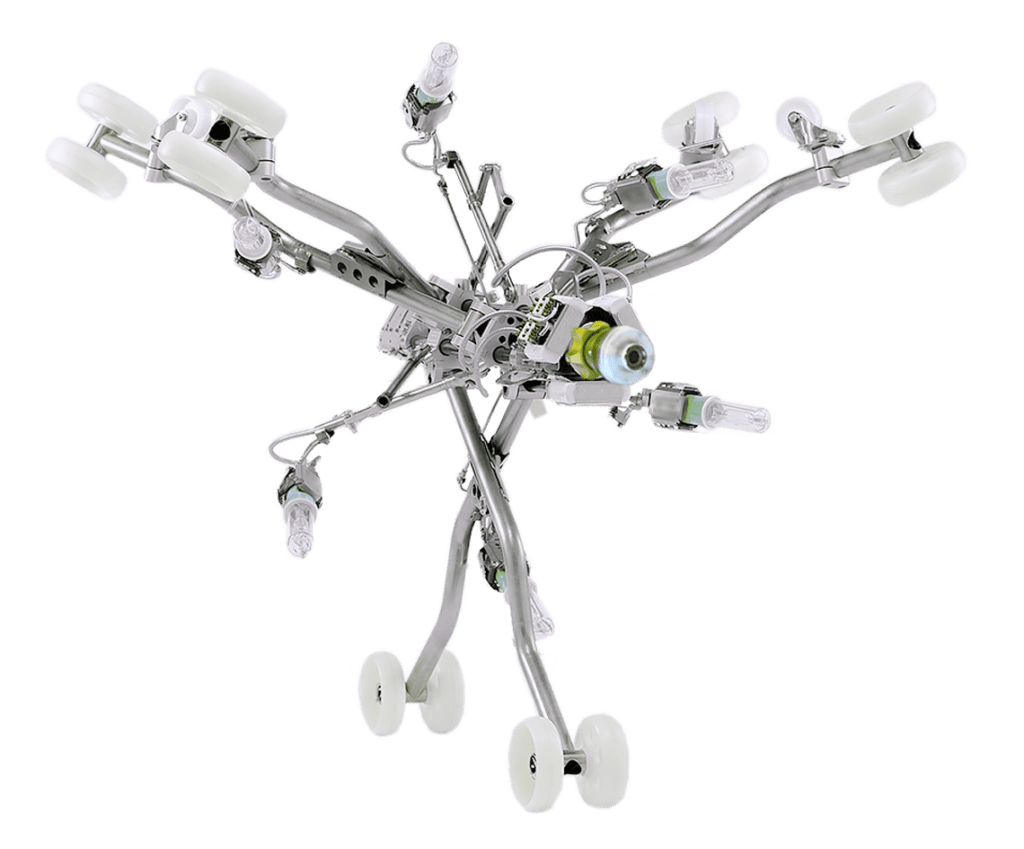

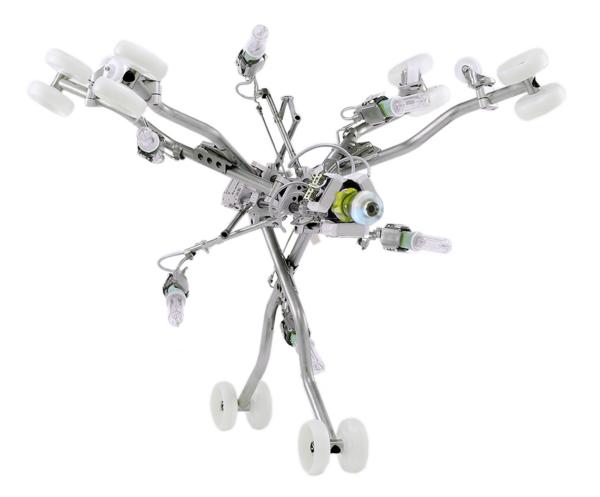

GIANT Core DN1200 - 2000

GIANT Core DN1200 – 2000

CITYLIGHT LIGHT SOURCES

Like the Light Chain and Dual Core, the Giant Core is suitable for circular and egg profiles. It contains three integrated infrared sensors for measuring the temperature of the liner surface. In addition, it has temperature sensors for measuring the air temperature in the liner.

The light source, which consists of two units, also has a front and back eye camera for visual control of the UV liner during the curing process. Due to the clever scissor lift of the electrically extendable legs, both units can be folded together to a minimum. This makes it possible to insert them into a standard DIN 19584 shaft (61.5 cm) without dismantling the legs or lamps.

PIPE DIMENSIONS

CIRCULAR PROFILES
EGG PROFILES

DN1200 – DN2000
DN900/1350

NUMBER OF LAMPS

12 PCS.

1500-2000 W WITH PLUGGABLE
CERAMIC SOCKETS

TOTAL POWER

18.000 W
24.000 W

USING 1500 W LAMPS
USING 2000 W LAMPS

IR Sensors

3 PCS.

DETECTION LAMINATE TEMPERATURE

AMBIENT-SENSOR

1 PCS.

DETECTION AMBIENT TEMPERATURE
Artikelnummer 29500002

MAXIMUM
PERFORMANCE
FOR MAXIMUM

DIAMETERS

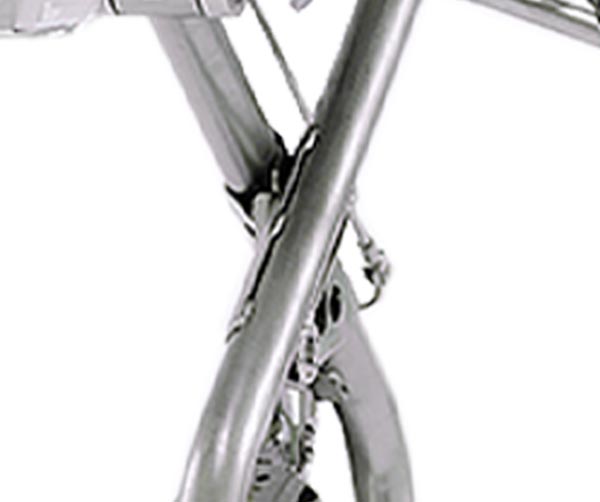

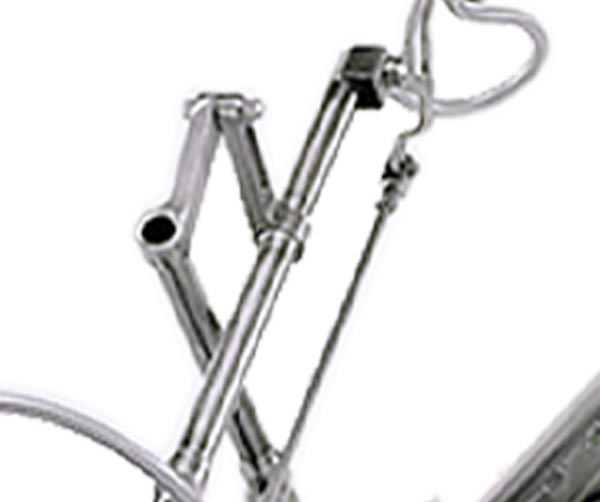

Scissor lift of the legs

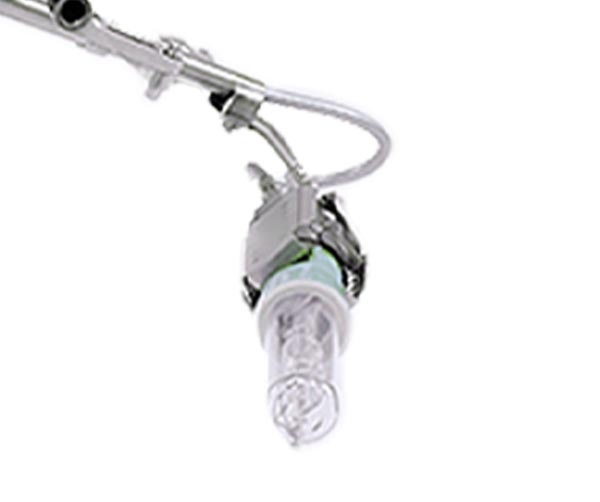

High power UV lamps

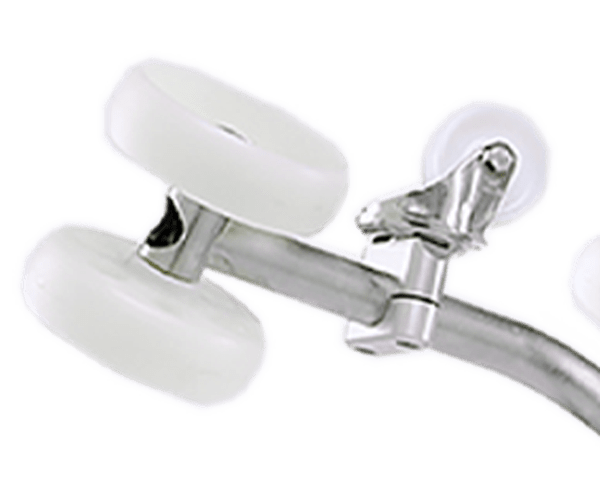

Vertical additional wheel

Electrical lamp adjustment

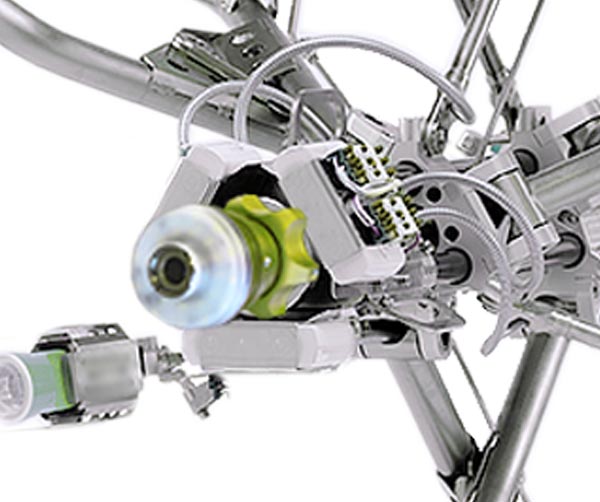

High resolution CCD camera

TECHNICAL DETAILS

Slide ADJUSTABLE LAMPS INFRARED SENSORS COMPACT CORE DUE TO SCISSOR LIFT
PLUG & PLAY FRONT CAMERA MAXIMUM NOMINAL RANGE

TOTAL POWERNUMBER OF LAMPSPOWER OF LAMPSIR SENSORSAMBIENT AIR SENSORNUMBER OF LIGHT SOURCES
24000 WATT24000 WATT1500 – 2000 WATT3 Sensors1 Sensor1 Light Cores
