Box trailer for rehabilitations up to DN 300

Box trailer for rehabilitations up to DN 300

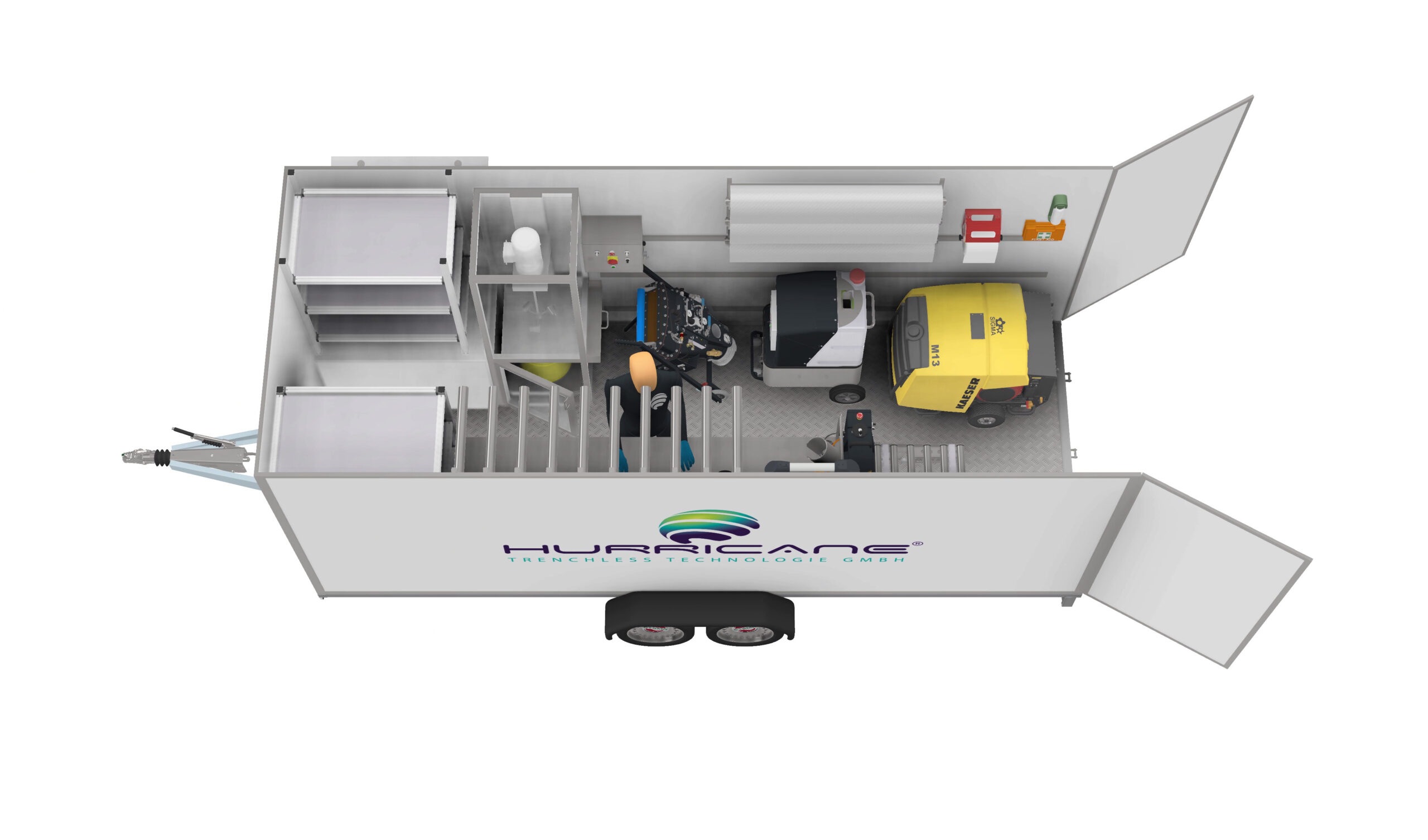

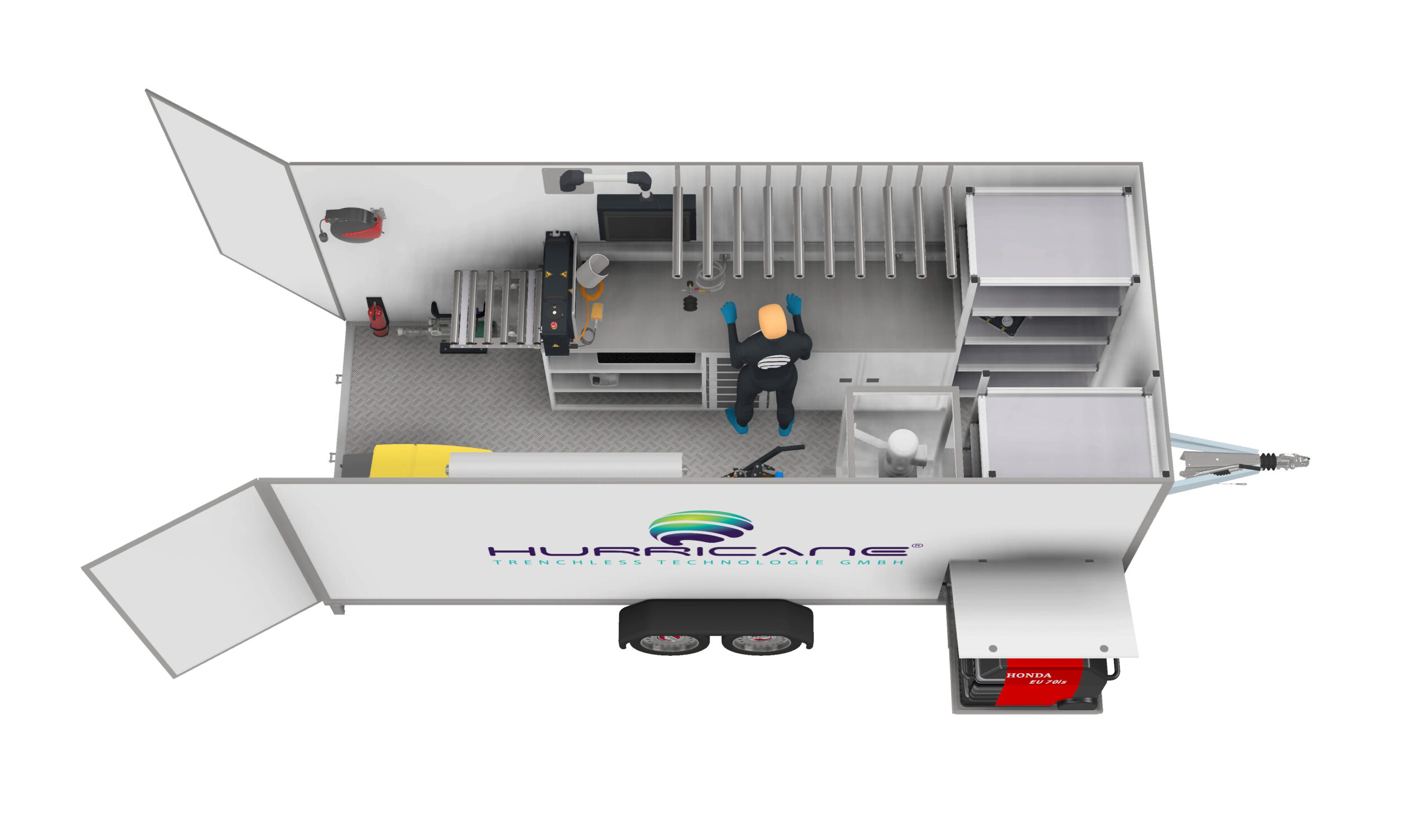

The dual axis box trailer for liner rehabilitation up to DN 300 has compact dimensions of 5x2x2 meters. It is designed as a stand- alone complete trailer and includes a fully equipped working area in which material can be stored and preparations can be carried out comfortably and safely. Power connections as well for compressed air and vacuum are integrated.. The calibration process can be controlled and monitored at the ergonomic workbench via a touch monitor. Inversion equipment including accessories are also on board. Optionally, the trailer is also available with a mover.

Slide Fire extinguisher
Electric cable reel
Vacuum pump
Calibration unit Mini DN
300 with foldable roller
table and filling device
Control and
documentation of the
impregnation process
Module workstation with
liner hanger, compressed
air and vacuum
connections
Shelving system for
consumables, pressure box
and tools
Power generator
with lid and pullout

Details Calibration Unit

Details Mixing System

Details Weather Protection Roof

Detail Generator Pullout

Slide Shelving system for
consumables and tools
Quick Mixing System
with connection for
documentation
Thunder Shooter 200
Inversion sluice
2x glass fiber roller
for short liner
Safety equipment (first aid
kit, eye wash)
Kaeser M13 Compressor
Heating Box
