CALIBRATION UNITS MINI
PRECISE CALIBRATION
of resin impregnated liners
IMPREGNATION SYSTEMS AND ROLLER TABLES
The innovative and material-friendly impregnation systems are ideally suited for the even distribution and complete soaking of the resins into the liner for trenchless sewer rehabilitation up to DN1200.

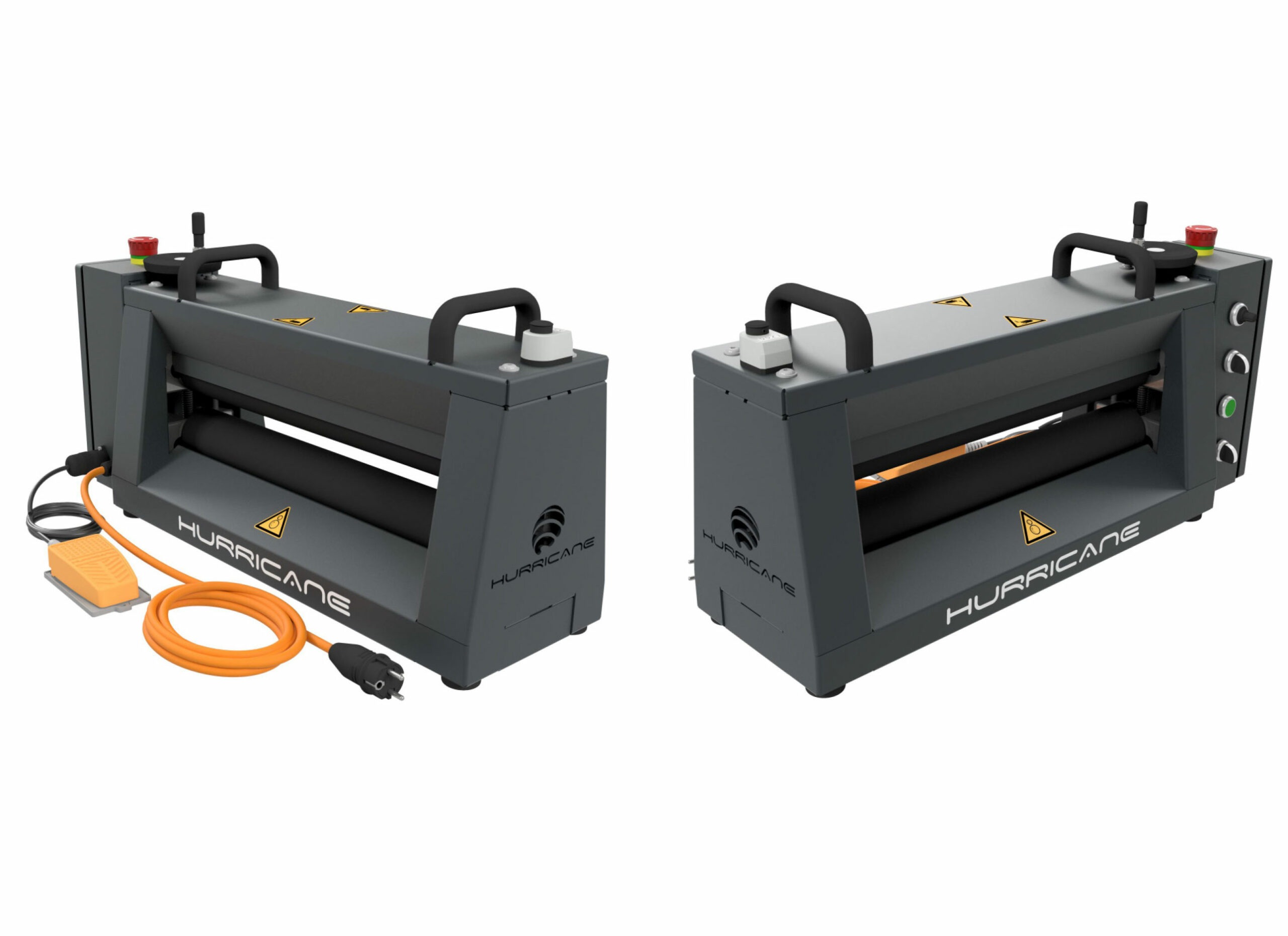

The Hurricane® Impregnation System Mini up to DN300 is a convenient, user-friendly solution in a new design. The compact version impresses with its low weight, sophisticated design and electronic calibration. The roller spacing, which determines the wall thickness as a result of the rehabilitation, can be defined on the top of the unit by a handle. The pull-through speed is defined and controlled electronically via a rotary control. Rubber feet on the underside always ensure optimum support for the unit.
ImprEGNATION SYSTEMS
MOBILE OR FIXED INSTALLATION
Our impregnation systems are available as mobile version or as fixed, permanent installation. The units are made of stainless steel or aluminum. The drive or propulsion can be realized manually or electrically. Roller conveyors are usually folded out or mounted on both sides of the unit, depending on the size of the system. Large versions can be optionally connected to PLC resin mixing systems.
The perfect tool for daily use. Developed and manufactured 100% in Germany:
- Optimum preparation of the liner – for various pipe dimensions
- Applicable with various rehabilitation packers
- Pressure monitoring by means of control valves and manometers
DETAIL VIEWS
OVERVIEW
RELINING
EXCELLENT FAST SAFE
The DIGITAL control concept AND THE PROTECTIVE COVER ensure PRECISE IMPRECIENTATION and SAFE HANDLING.
STATE OF THE ART
EQUIPMENT
Rubber feet
Length measuring unit
Pedal control
Emergency stop
Electronics integrated
FEATURES AND DETAILS
| NAME | ORDER NUMBER | DIMENSIONS (LXWXH) | Max. liner dn | ROLLER TABLE | VERSION | PROTECTIVE COVER | ROLLER DRIVE | WEIGHT | HEIGHT ADJUSTMENT |
|---|---|---|---|---|---|---|---|---|---|
| Impregnation System Mini | 21000270 | 860 x 300 x 450 mm | 300 | no | mobile version | no | electric | 30kg | manually with handle |
