THUNDER DRUM 400 LIGHT
MOBILE INVERSION DRUMS
For pipe rehabilitation using the inversion process
Field-proven and robust inversion equipment for uncomplicated pipe rehabilitation
With the help of the Hurricane inversion drums, the flexible liner can be easily, safely and quickly inserted into the sewer that needs to be rehabilitated. The resin-impregnated hose (liner) is wound onto the drum axle with a control rope and inversed into the open-ended or closed-ended sewer by compressed air. The inversion pressure and the inversion speed are constantly controlled via the control elements on the inversion drum.
After the impregnated liner has been inverted, the heating medium hot water or steam is introduced via the inversion drum to accelerate the curing process by means of thermal energy. This results in the creation of a new pipe in the old pipe.
Inversion drum for liner from DN100 to DN150
Mobile Hurricane® Thunder Drum inversion unit on stable frame construction and with side loading for inserting the liner in the main sewer and side inlets up to DN150.
Cost-optimized overall concept

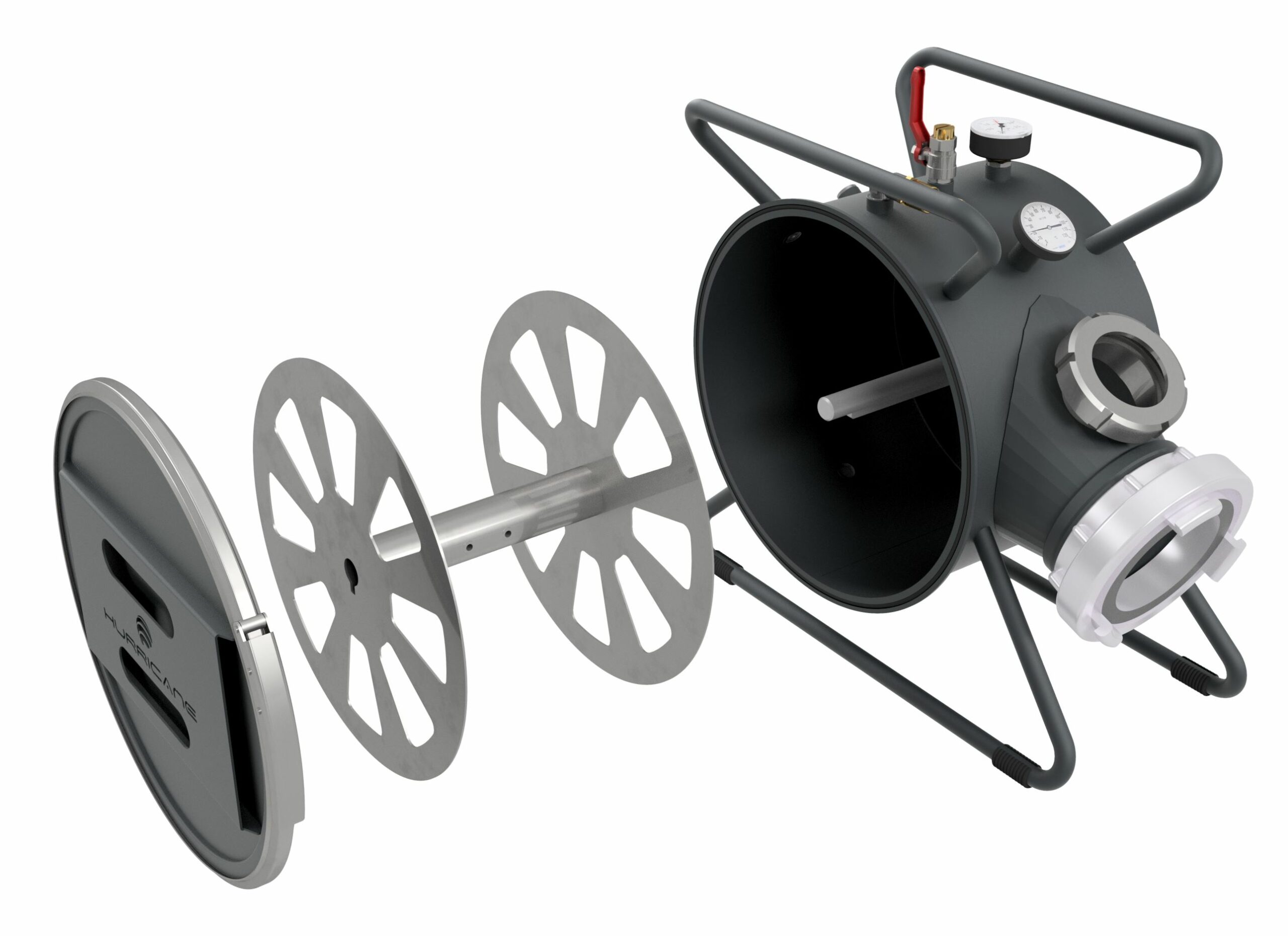

Drum body with newly developed side opening and lid
Stainless steel construction, glass bead blasted and coated
Lightweight construction
6“ Storz closure system on cone
Removable, large and ergonomic hand wheel
Clearly arranged instruments on the upper part of the drum body
DETAIL VIEWS
OVERVIEW
EXCELLENT
FAST
SAFE
RELINING
STATE OF THE ART
EQUIPMENT
Premium fittings
Protective brackets
Easy grip handwheel
Quick release lock
Glass window
FEATURES AND DETAILS
| NAME | DRUM-Ø | DIMENSIONS (WXLXH) | Control window | Connection | Max. Pressure | Curing method | Max. Temperature | Weight | Safety valve | Max. Liner Lenght |
|---|---|---|---|---|---|---|---|---|---|---|
| Hurricane® Thunder Drum 400 light | 400mm | 286 x 614 x 565 mm | 380 x 380 mm | 6“ Storz | 1,5 bar | Air, steam, hot water, light | 100°C | 30 kg | 1,5 bar | DN100/4mm = 16m DN125/4mm = 14m DN150/4mm = 12m |
