LIGHT TRAIN WINCH

Hurricane® Light Train Winch
Light source draw-in winch

BATTERY POWER SUPPLY

OR

ELECTRIC SUPPLY 110V 220V

  • Dimensions (W x L x H) 824 x 1280 x 1197mm
  • Weight (with battery unit) 131kg (288.8lb)
  • Weight (without battery unit) 101kg (222.7lb)
  • Power supply 110V / 60Hz; 220V / 50Hz
  • Traction force top rope layer 330kg (727.5lb)
  • Traction force lowest rope layer 400kg (881.9lb)

LIGHT TRAIN WINCH VIDEO

Hurricane® Light Train Winch
Light source draw-in winch

The “Light Train Winch” with film winder was developed to feed UV light sources into the installed liner in a controlled and gentle manner prior to UV liner rehabilitation. Furthermore, the liner inner film can be pulled and wound onto the film spindle once the curing process is complete.

The system is mobile and can be operated either via a conventional 2-phase power connection or completely independently via a removable battery pack, which makes transport and commissioning easier.

A rope guide system ensures that the rope is wound up evenly and in a space-saving manner.

The clearly laid out control panel at the rear contains all the system’s operating elements. The system can also be controlled via the cable remote control.

The feet of the frame construction can be adjusted horizontally to ensure optimum stability during operation.

FEATURES AND DETAILS (Main unit)

CONTROLS

EXZELLENTES
SCHNELLES
SICHERES

RELINING

PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS

MODELDIMENSIONS (W x L x H)WEIGHT (with battery unit)WEIGHT (without battery unit)POWER SUPPLY
Light Train Winch824 x 1280 x 1197mm131kg (288.8lb)101kg (222.7lb)110V / 60Hz; 220V / 50Hz
INPUT POWERINPUT CURRENTTRACTION FORCE
TOP ROPE LAYER
TRACTION FORCE
LOWEST ROPE LAYER
1380W12,5A; 6A330kg (727.5lb)400kg (881.9lb)

Main unit can work on external or battery power supply

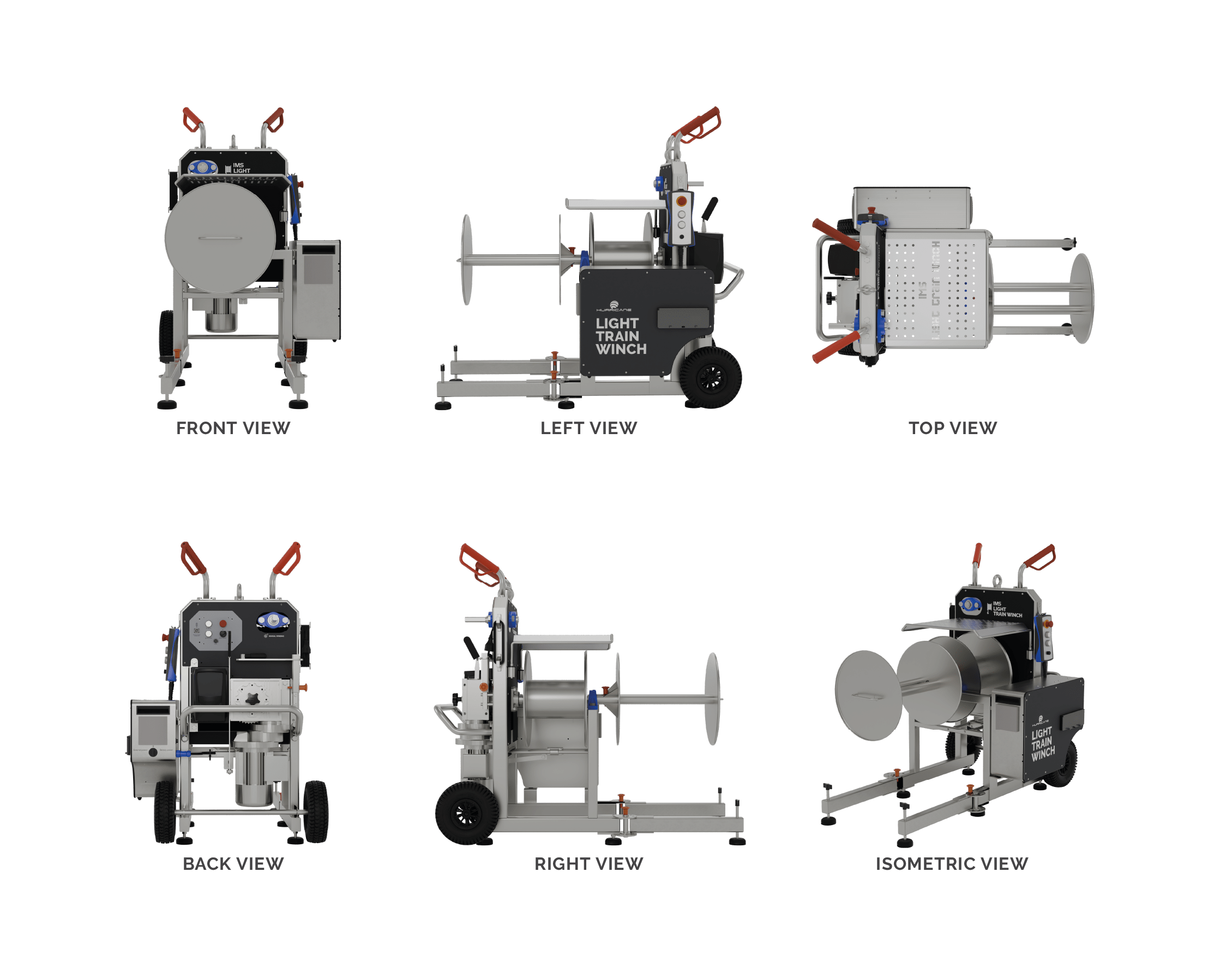

PRODUCT VIEW’S

STATE OF THE ART

EQUIPMENT

BATTERY UNIT SPECIFICATIONS

BATTERY UNIT SPECIFICATIONS

MODELDIMENSIONS (W x L x H)WEIGHTCHARGING TIME (min-max)CAPACITY AT MAX LOADADDITIONAL SOCKET TYPEAC INPUT
Light Train Winch Battery Unit222 x 549 x 429mm31kg (66,2lb)5h1,5hSingle phaze110V/60Hz; 220V/50Hz

FEATURES AND DETAILS (Battery unit)

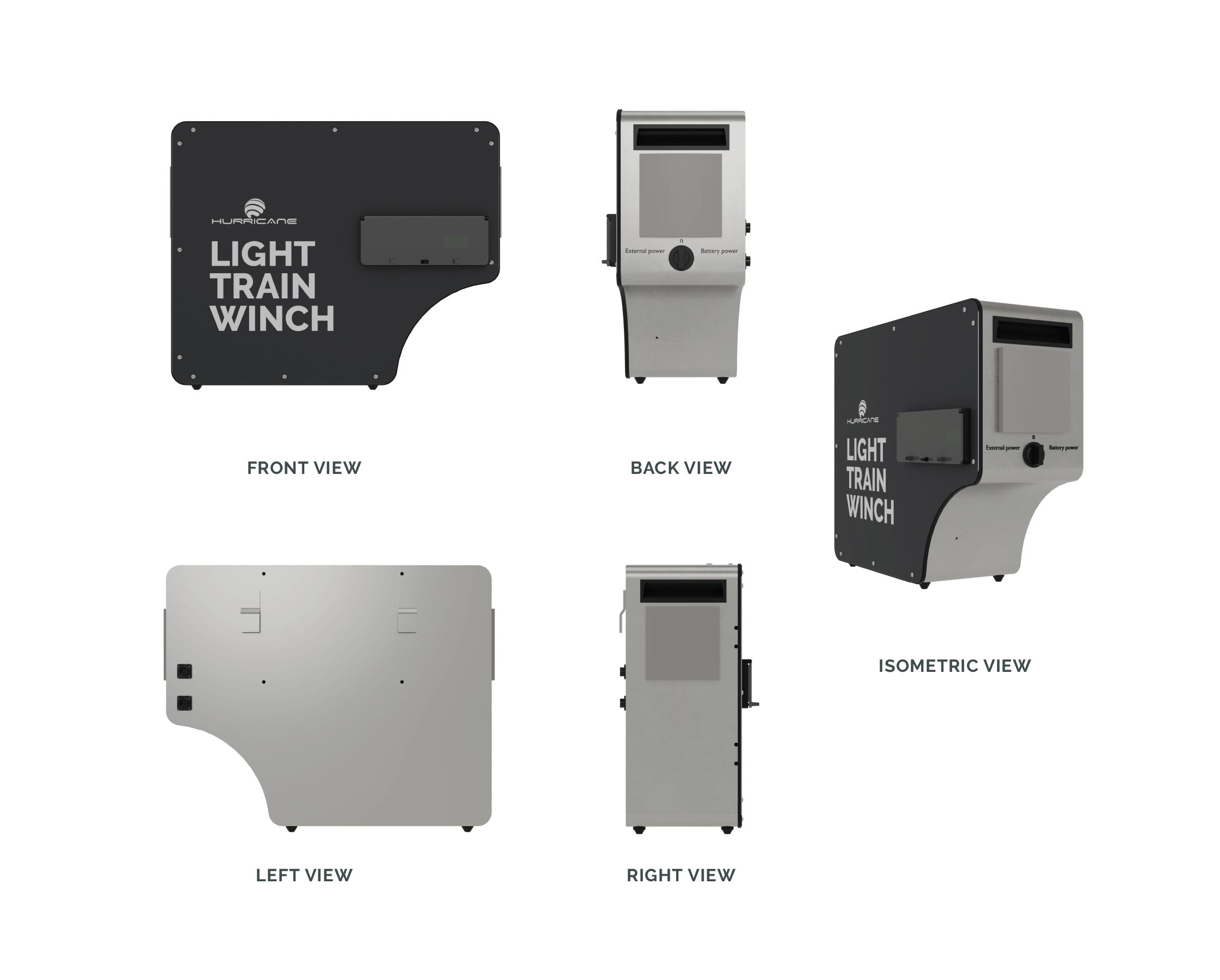

PRODUCT VIEW’S
