THUNDER DRUM 400
MOBILE INVERSION DRUMS
For the rehabilitation of damaged pipes and sewers
Field-proven and robust inversion equipment for uncomplicated pipe rehabilitation
With the help of the Hurricane inversion drums, the flexible liner can be easily, safely and quickly inserted into the sewer that needs to be rehabilitated. The resin-impregnated hose (liner) is wound onto the drum axle with a control rope and inversed into the open-ended or closed-ended sewer by compressed air. The inversion pressure and the inversion speed are constantly controlled via the control elements on the inversion drum.
After the impregnated liner has been inverted, the heating medium hot water or steam is introduced via the inversion drum to accelerate the curing process by means of thermal energy. This results in the creation of a new pipe in the old pipe.
Inversionstrommel für Liner von DN100 bis DN150

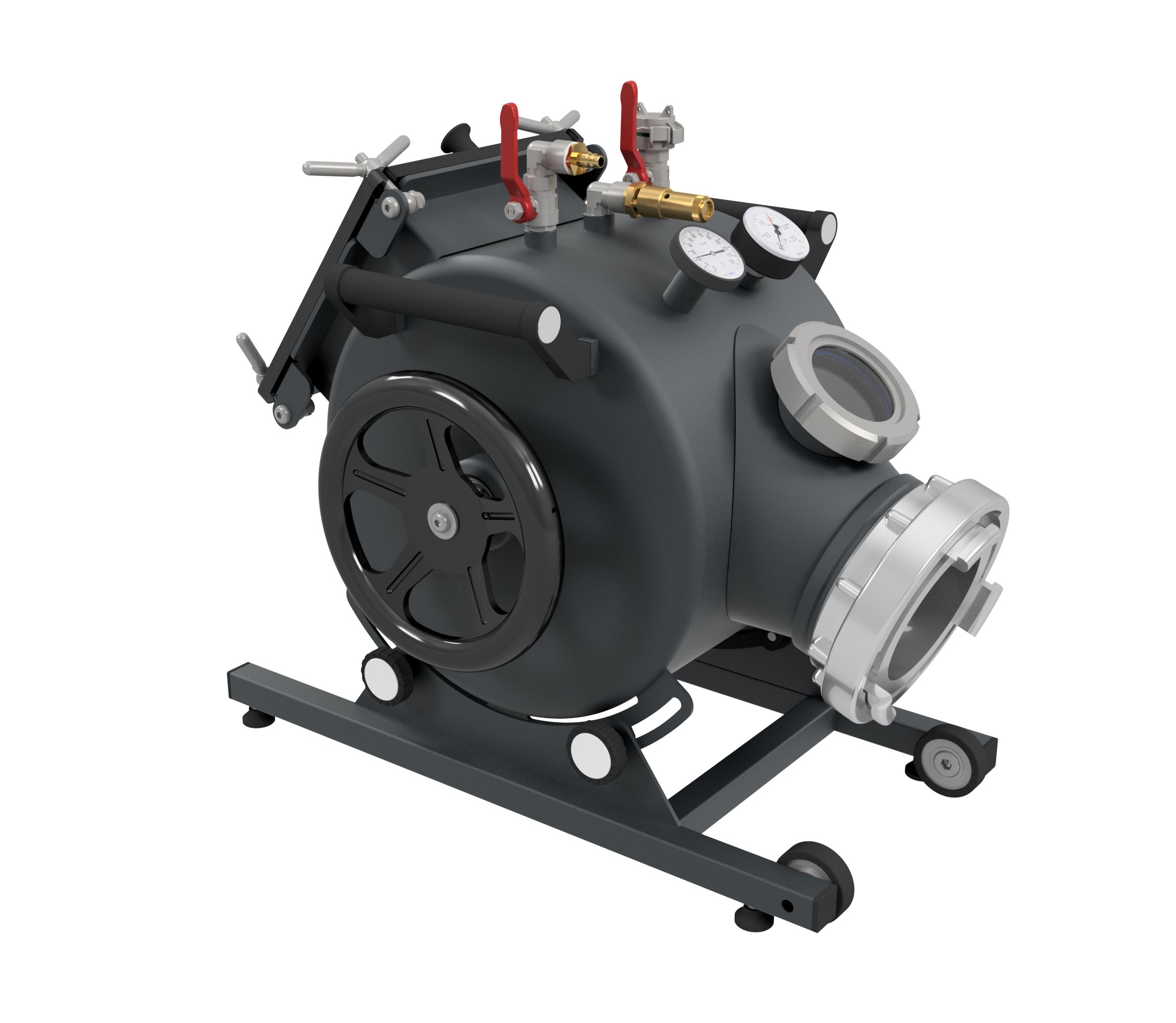

Mobile Hurricane® Thunder Drum inversion unit on stable frame construction and with side loading for inserting the liner in the main sewer and side inlets up to DN150.
- Optimized tilting system by means of tool-free locking device
- Drum body with glass window
- Stainless steel construction, glass bead blasted and coated
- Transport rollers for easy positioning
- 6“ Storz locking system on the cone
- Removable, large and ergonomic hand wheel
- Suitable for curing with hot water, steam and UV
DETAIL VIEWS
OVERVIEW
EXCELLENT
FAST
SAFE
RELINING
STATE OF THE ART
EQUIPMENT
Premium fittings
Tilt adjustment
Easy grip handwheel
Transport wheel
Glass windows
FEATURES AND DETAILS
| NAME | DRUM-Ø | DIMENSIONS (WXLXH) | Control window | Connection | Max. Pressure | Curing method | Max. Temperature | Weight | Safety valve | Max. Liner Lenght |
|---|---|---|---|---|---|---|---|---|---|---|
| Hurricane® Thunder Drum 400 | 400mm | 454 x 710 x 621 mm | 200 x 215 mm | 6“ Storz | 1,5 bar | Air, steam, hot water, light | 100°C | 34 kg | 1,5 bar | DN100/4mm = 18m DN125/4mm = 15m DN150/4mm = 13m |
