BLACK-BENDY PACKER
REHABILITATION PACKER
for short liner & house connection rehabilitation
SHORT LINER REHABILITATION SIMPLE AND SAFE

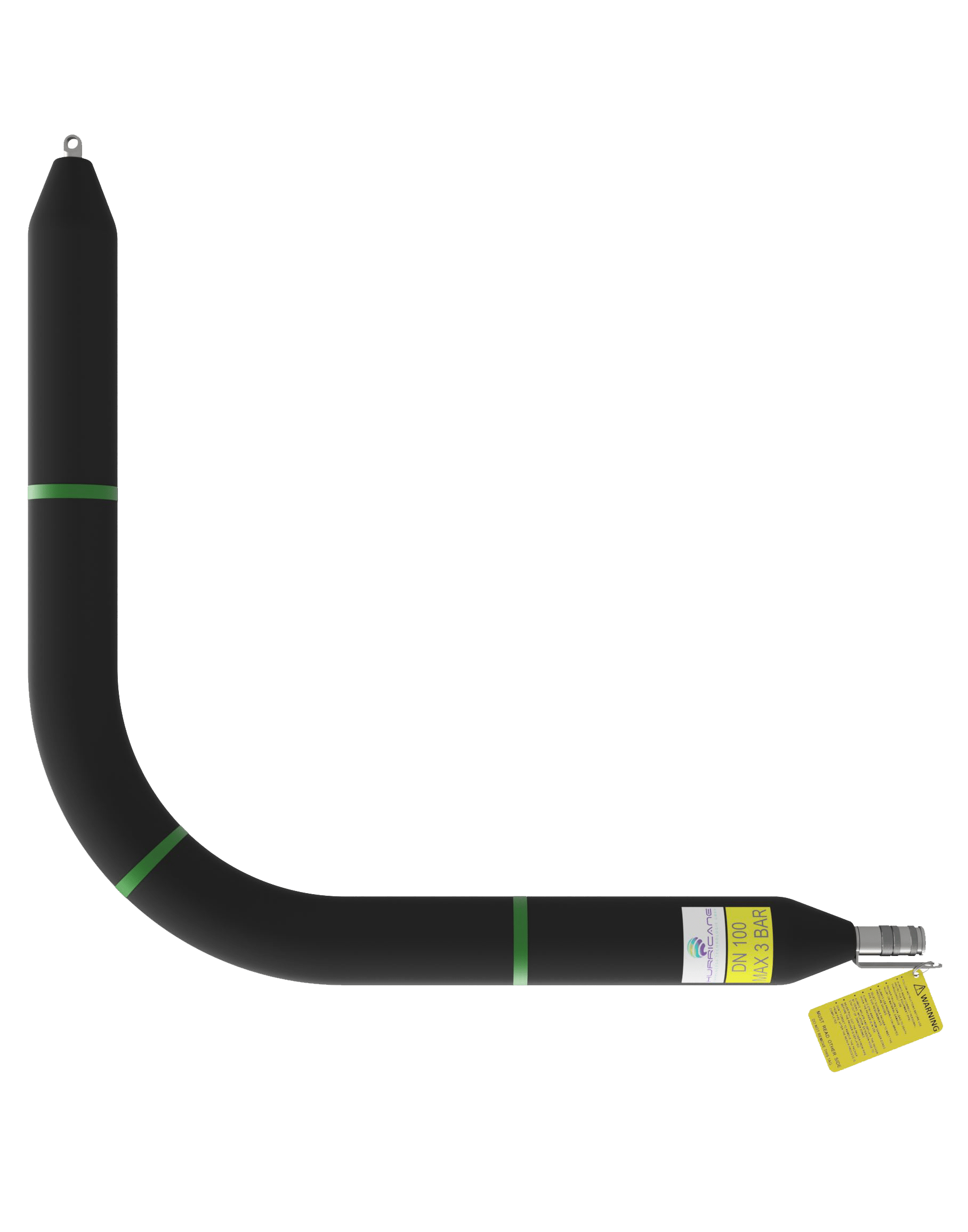

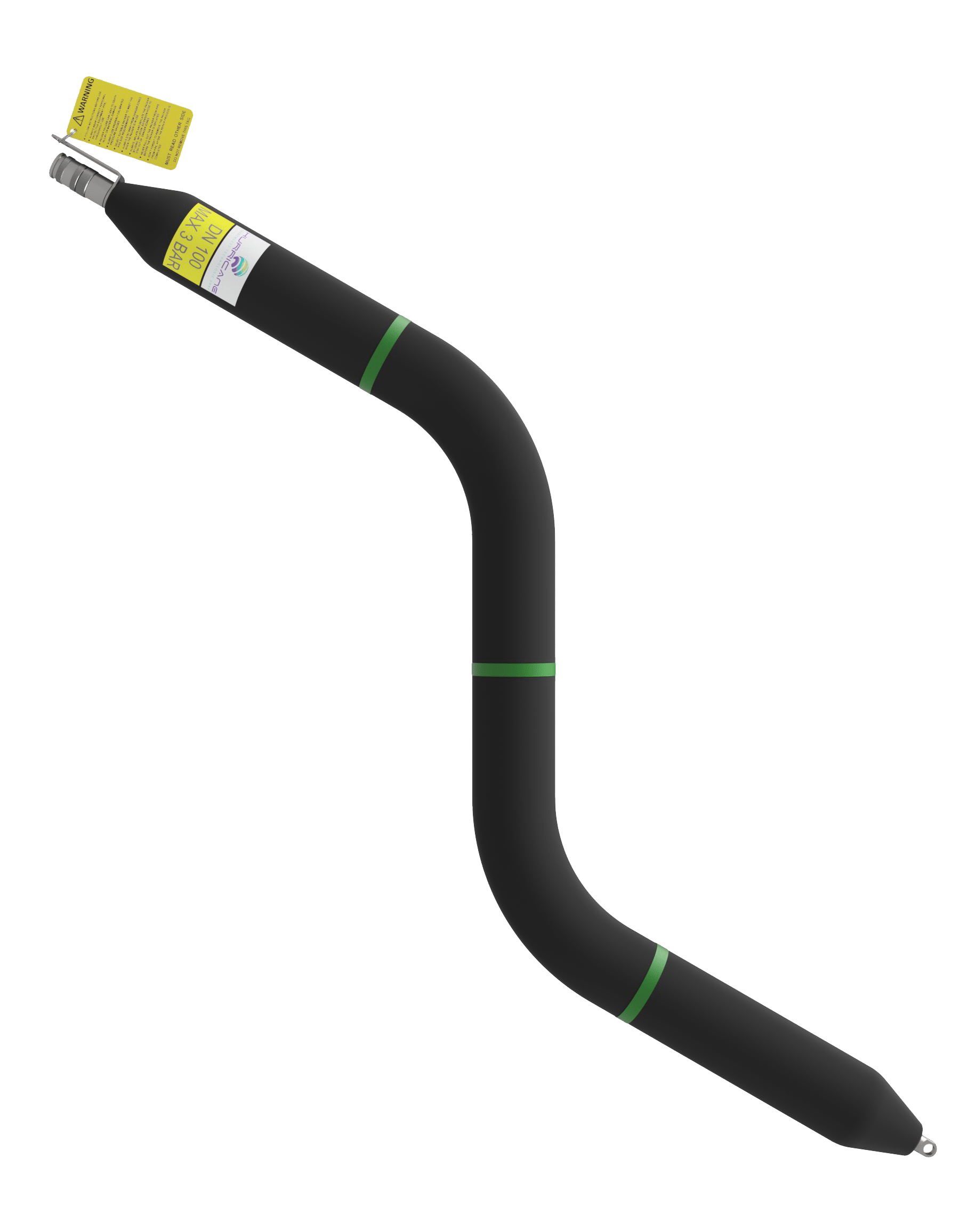

Our bend packers are form-stable and yet very flexible. They enable innovative and practical rehabilitation without significant cross-sectional narrowing in pipe bends. The packers have compressed air connection with quick coupling and towing eyes, which are even installed on both sides depending on the size.
REHABILITATION PACKERS FOR HOUSE CONNECTIONS AND LATERAL PIPES
- optimum expansion (radial and axial inflation)
- does not buckle
- ideal sliding behavior
- can be used with conventional ECR glass fiber mats
- suitable for all pipe materials ( PVC / vitrified clay / SML)
- small packer diameter
- efficient and economical working
OVERVIEW
ALSO ASK FOR OUR CONSUMABLES
STATE OF THE ART
EQUIPMENT
High quality material
Quick coupling
1 packer for 5 dimensions
Best bend results
stable towing eyelet
FEATURES AND DETAILS
| NAME | ORDER NUMBER | Dimensions (LxWxH) | MIN. Ø | MAX. Ø | MAX.PRESS. | WEIGHT |
|---|---|---|---|---|---|---|
| Black-Bendy Packer | 1120001 | 45 x 1250mm | 50 | 70 | 3,0 bar | 1,2 kg |
| Black-Bendy Packer | 1120002 | 60 x 1250mm | 70 | 80 | 3,0 bar | 1,4 kg |
| Black-Bendy Packer | 1120003 | 85 x 1250mm | 100 | 125 | 3,0 bar | 1,6 kg |
| Black-Bendy Packer | 1120004 | 92 x 1250mm | 125 | 150 | 3,0 bar | 2,2 kg |
| Black-Bendy Packer | 1120005 | 138 x 1250mm | 150 | 165 | 3,0 bar | 3,2 kg |
| Black-Bendy Packer | 1120006 | 155 x 1250mm | 175 | 220 | 3,0 bar | 3,8 kg |
| Black-Bendy Packer | 1120007 | 198 x 1250mm | 225 | 250 | 3,0 bar | 4,5 kg |
| Black-Bendy Packer | 1120008 | 242 x 1250mm | 280 | 300 | 3,0 bar | 5,0 kg |
