THUNDER SHOOTER 200
Inversion sluice
for hose relining without length limitation
PERFECT FOR SEWER PIPE TECHNOLOGY
The Hurricane® Thunder Shooter 200 is used for the inversion of hose liners up to a size of DN 200 without length limitation. The smart compressed air control system ensures smooth insertion of the liner into the pipe. Depending on the characteristics of the liner – size and stiffness of the coating – this process succeeds continuously. This means in one operation, in a 2-stroke process using an integrated sealing chamber.
INVERSION SLUICES IN SEWER REHABILITATION
FLEXIBLE
You decide the curing process! Steam, hot water, cold curing or UV light curing. The adaptation to water towers for the so-called water tower inversion is possible without any problems. The Hurricane® Thunder Shooter is suitable for all common rehabilitation methods and materials.
ERGONOMIC
The main connection for compressed air, which is located on the upper part of the sluice, has an additional bypass. On the left and right side of the sluice body there are carrying handles, which simplify the positioning inside buildings.

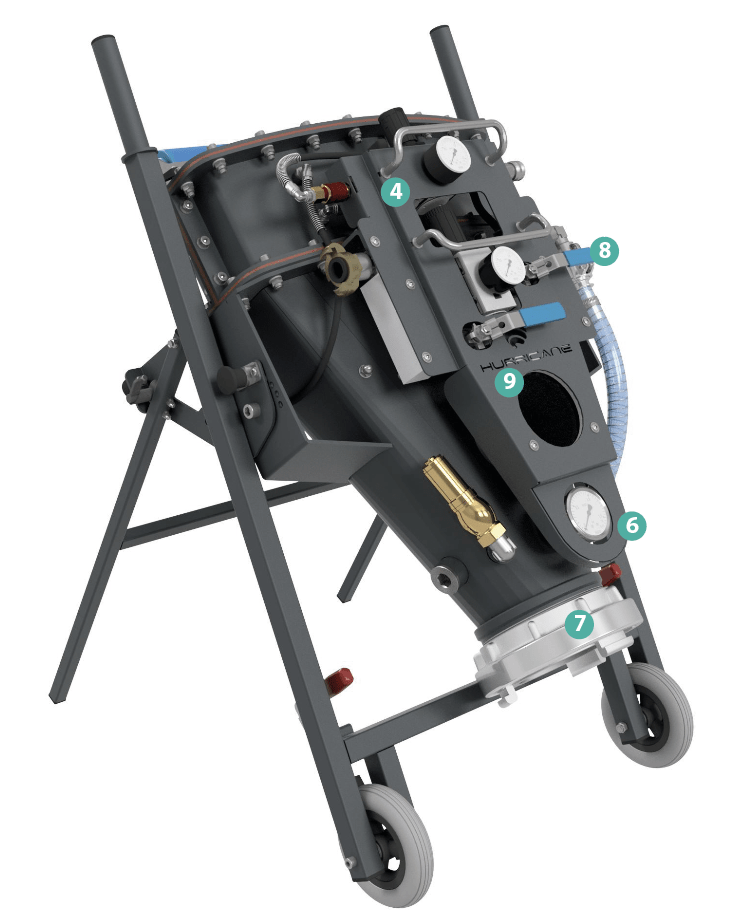

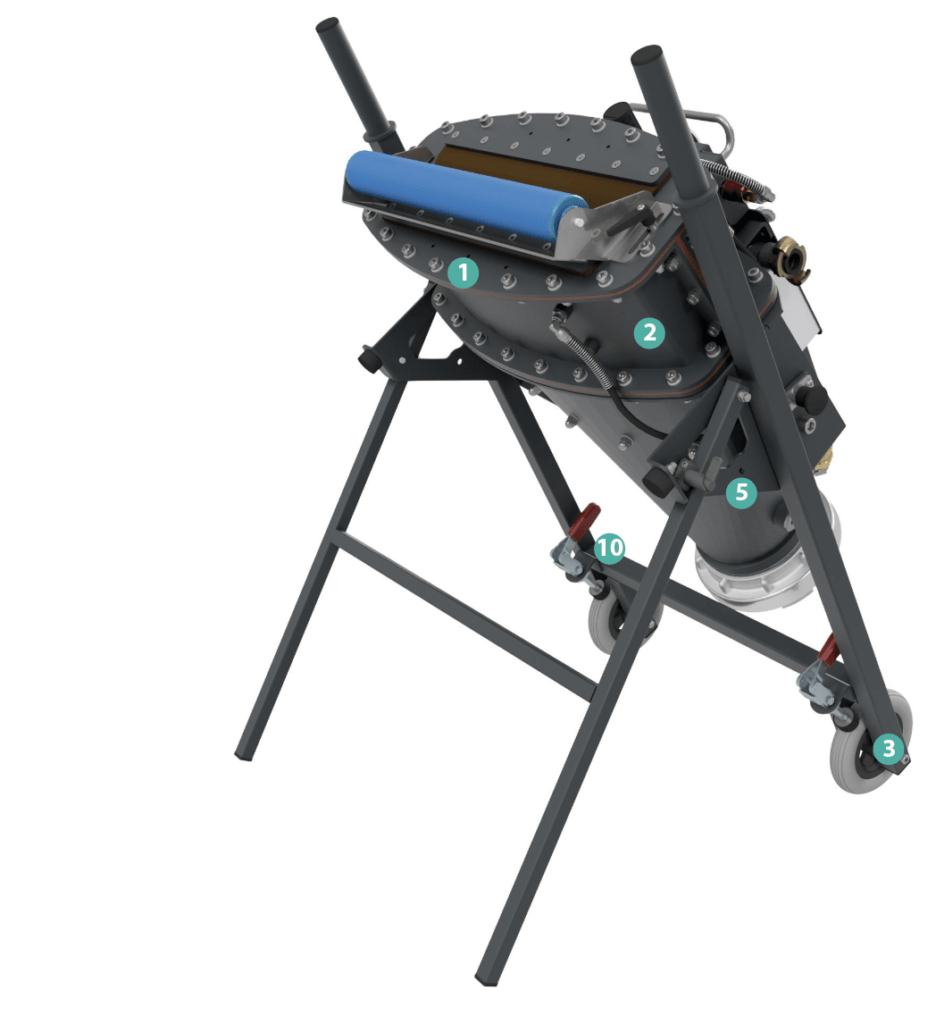

DETAIL VIEWS
OVERVIEW
RELINING
EXCELLENT
FAST
SAFE
The base frame has a locking function and makes the insertion of the liner into the inner chambers easier.
STATE OF THE ART
EQUIPMENT
FEATURES AND DETAILS
| NAME | CHAMBERS | SIZE (WxLxH) | Control window | Connection | Max. Pressure |
|---|---|---|---|---|---|
| Hurricane® Thunder Shooter 200 | 1 | 617 x 785 x 952 mm | Ø 150 MM | 8“ Storz / Camlock | 1,5 bar |
| Curing method | Max. Temperature | WEIGHT | Safety valve | Max. Liner LENGHT |
|---|---|---|---|---|
| Air, steam, hot water, UV light | 100°C | 36 kg | 1,5 bar | DN 100 - DN 200 = ∞ |
