THUNDER SHOOTER 300

Inversion sluice

for hose relining without length limitation

PERFECT FOR SEWER PIPE TECHNOLOGY

The Hurricane® Thunder Shooter 300 is used for the inversion of hose liners up to a size of DN 200 without length limitation. The smart compressed air control system ensures smooth insertion of the liner into the pipe. Depending on the characteristics of the liner – size and stiffness of the coating – this process succeeds continuously. This means in one operation, in a 2-stroke process using an integrated sealing chamber.

Our advantage of the multi-chamber system enables almost automated pulling-in and inversion of the impregnated and calibrated hose liner, without the conventional manual re-feeding process. The permanent pressure stability ensures the necessary liner safety and reduces wrinkling in the final result.

INVERSION SLUICES IN SEWER REHABILITATION

FLEXIBLE

You decide the curing process! Steam, hot water, cold curing or UV light curing. The adaptation to water towers for the so-called water tower inversion is possible without any problems. The Hurricane® Thunder Shooter is suitable for all common rehabilitation methods and materials.

ERGONOMIC

The main connection for compressed air, which is located on the upper part of the sluice, has an additional bypass. On the left and right side of the sluice body there are carrying handles, which simplify the positioning inside buildings.

DETAIL VIEWS

OVERVIEW

RELINING

EXCELLENT
FAST
SAFE

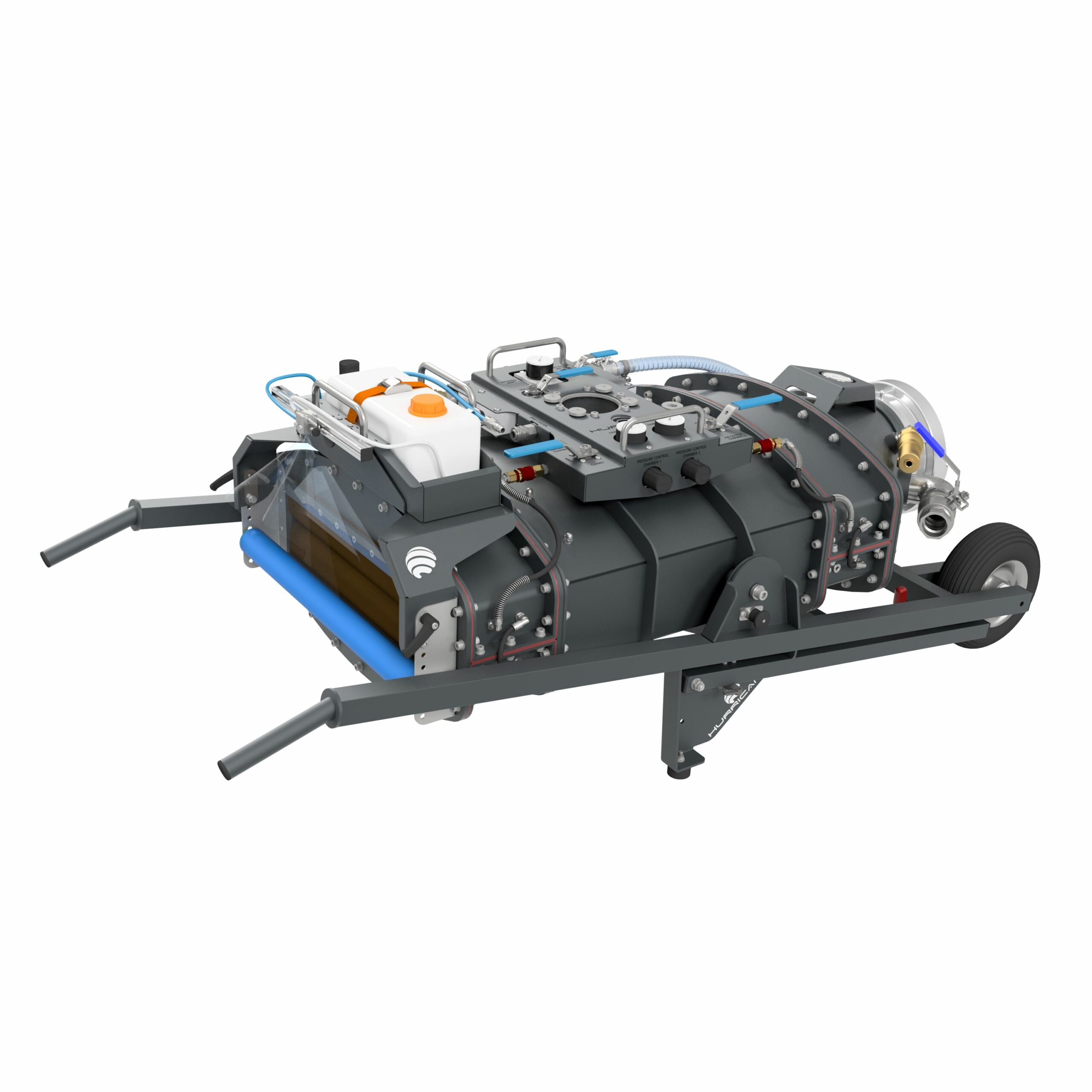

The base frame has a locking function and makes the insertion of the liner into the inner chambers easier.

STATE OF THE ART

EQUIPMENT

Parking brakes
Liner lubrication spray system
High quality coating
Sight glass
Pressure monitoring

Slide SHOOTER PRESSURE CHAMBER 1 pressure chamber 2

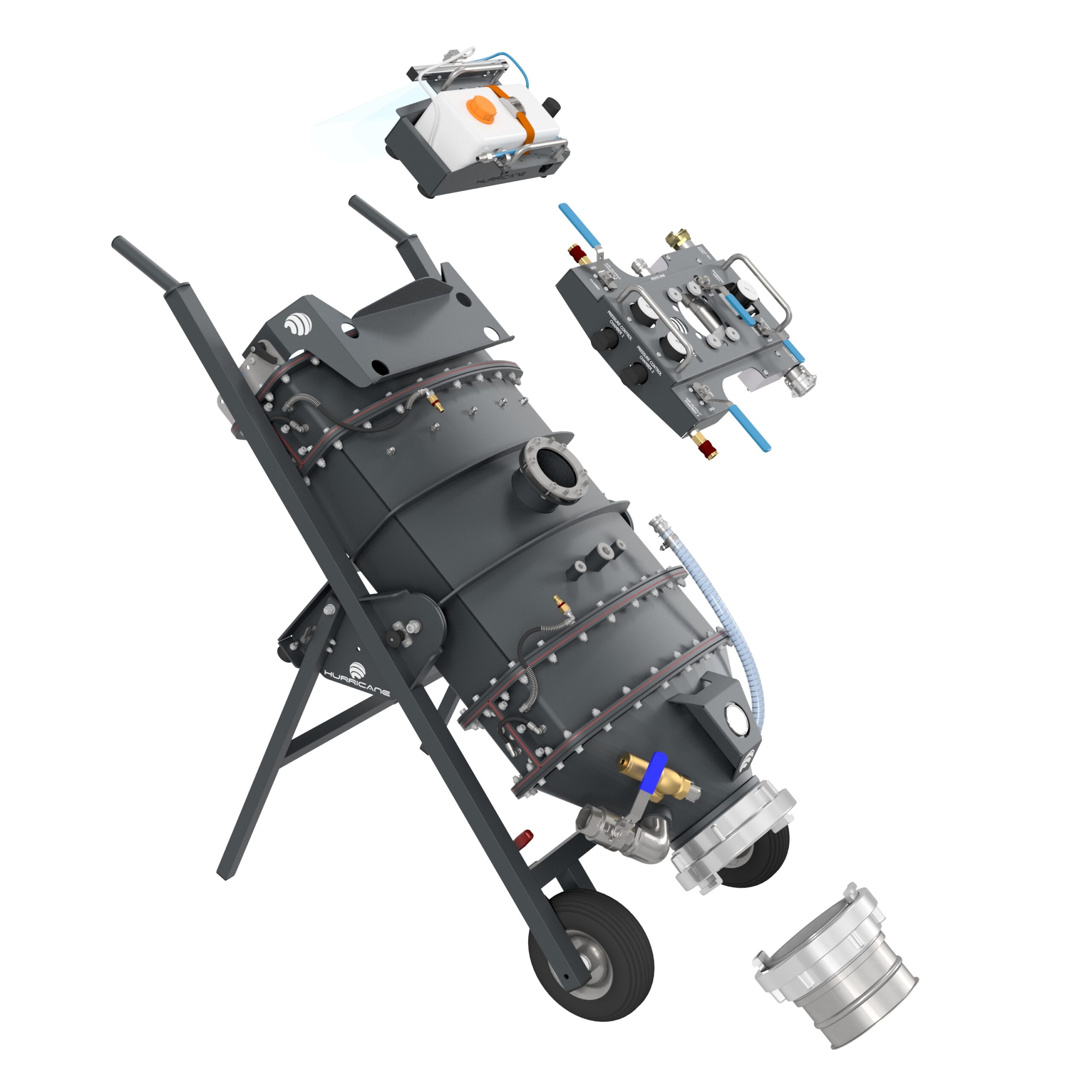

FRAME CONSTRUCTION WITH ROLLERS Control unit SPRAY SYSTEM
FOLDING MECHANISM
COMPRESSED AIR MONITORING
INVERSION CONE
COMPRESSED AIR SUPPLY CONTROL
CONTROL PRESSURE CHAMBER 2 CONTROL PRESSURE CHAMBER 1 CONTROL SIGHT GLASS

FEATURES AND DETAILS

NAMECHAMBERSSIZE (WxLxH)Control windowConnectionMax.
Pressure
Hurricane® Thunder Shooter 3002 1800 x 630 x 750 mm Ø 150 MM8“ Storz /
Camlock
1,5 bar

Curing methodMax.
Temperature
WEIGHTSafety valveMax. Liner LENGHT
Air, steam, hot water, UV light100°C80 kg1,5 barDN 100 - DN 300 = ∞
