Fully equipped truck for UV CIPP rehabilitation up to DN 1600

Fully equipped truck for UV CIPP rehabilitation up to DN 1600

The 15-ton truck is designed for CIPP liner rehabilitation up to DN 1600 with UV light curing. It has a spacious, separate social area with kitchenette and seat bench. The vehicle comes with all the equipment and systems needed to connect, calibrate and cure UV liners. The main components are the CityLight UV system with 300 meters of cable. In another sound insulated compartment, a large blower and the generator with 60 KVA are connected in order to be able to work completely autonomous. The PLC control of the UV system continuously collects and logs data on the control PC.

Slide Soundproof insulated
partition wall to the
generator room
Flexibly adjustable
extension arm with cable
deflection

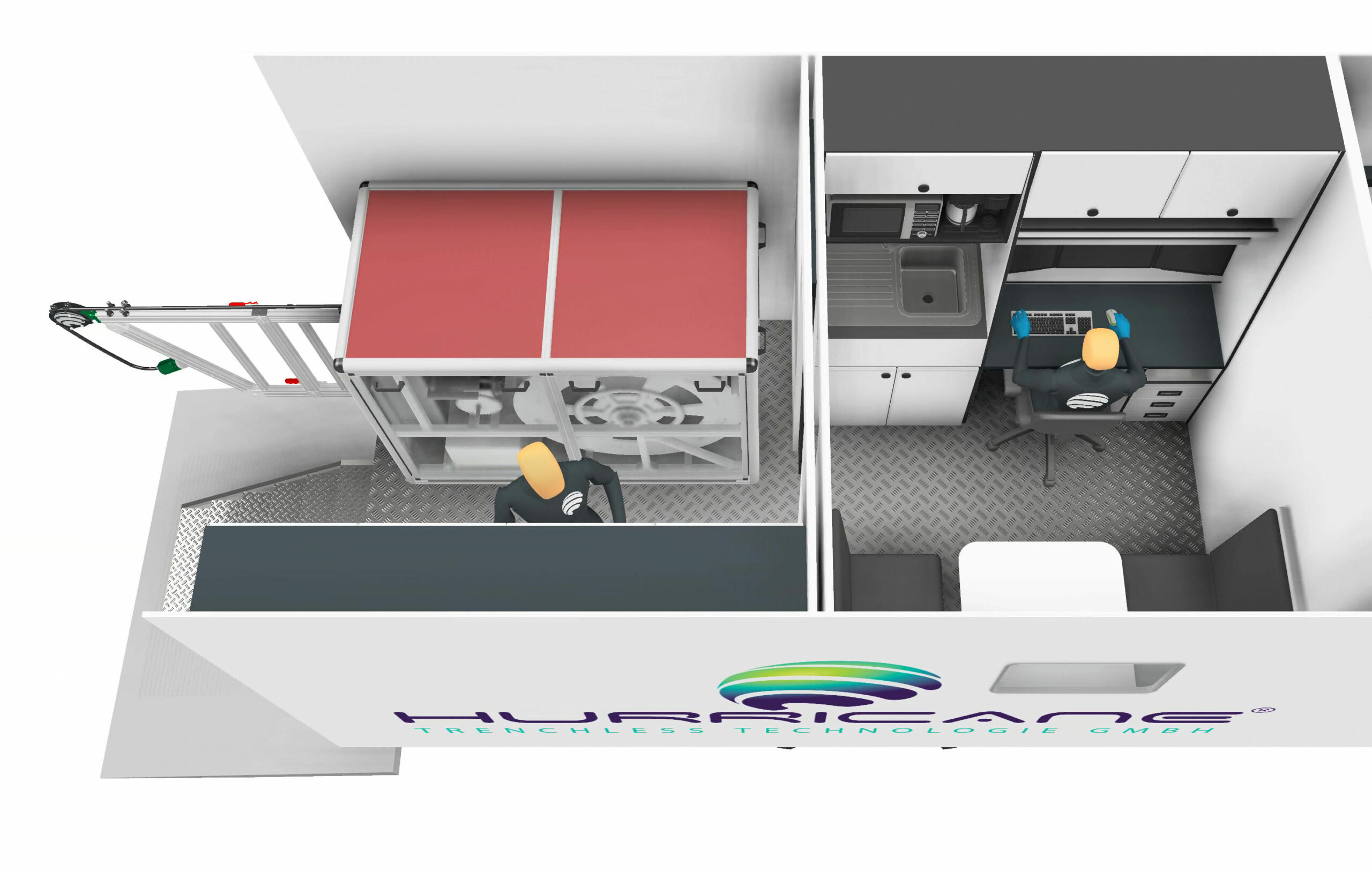

CityLight UV system with
300 meters of cable up
to DN1600
Partition wall with sliding
door to the workspace
Kitchen module with
microwave and refrigerator
PLC control
for the blower

Working table for preparation and assembly

Ergonomic PC workstation

UV accessories

Slide Shelving system above worktable Entrance and exit of
generator room with
extendable external
staircase

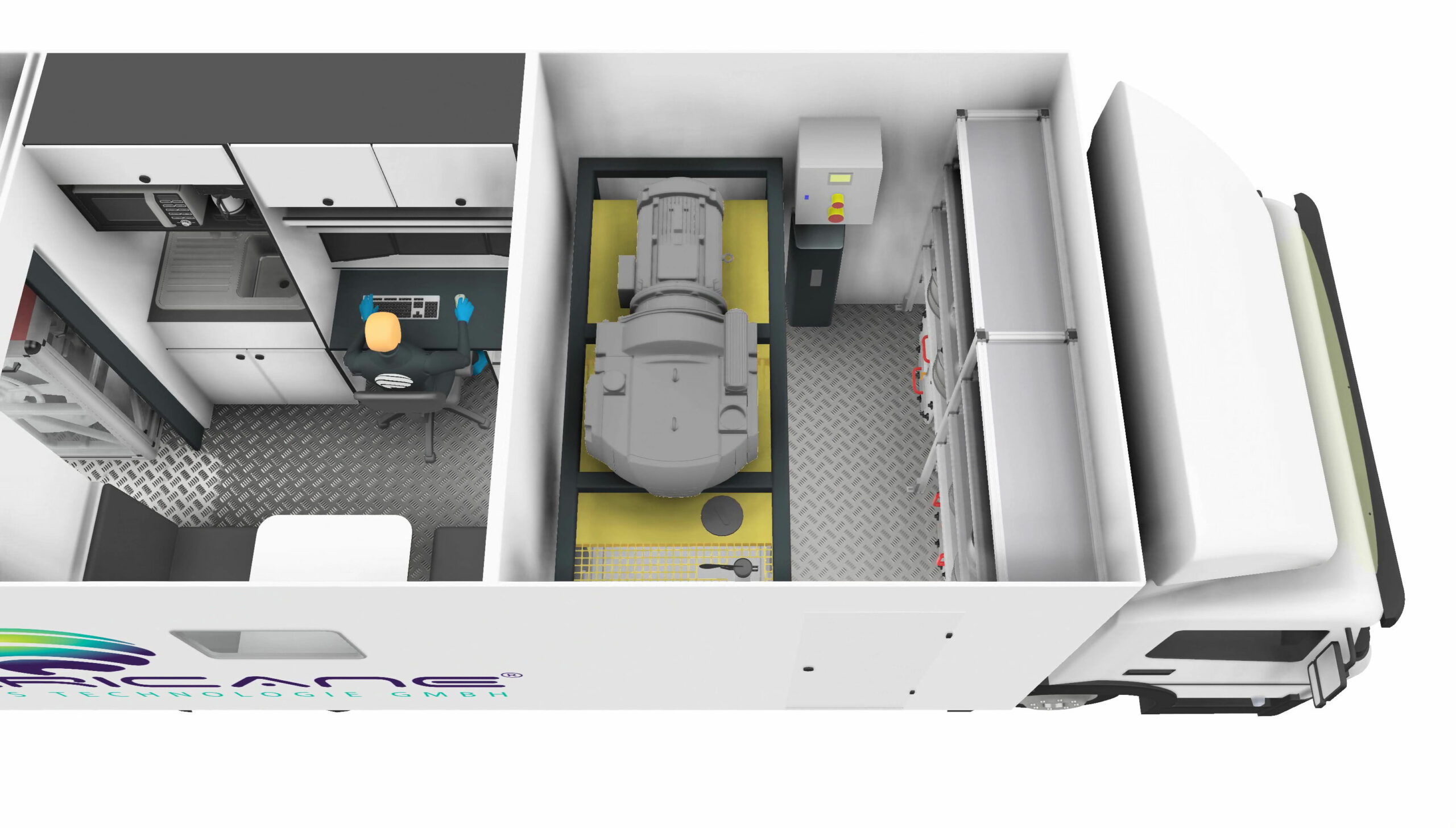

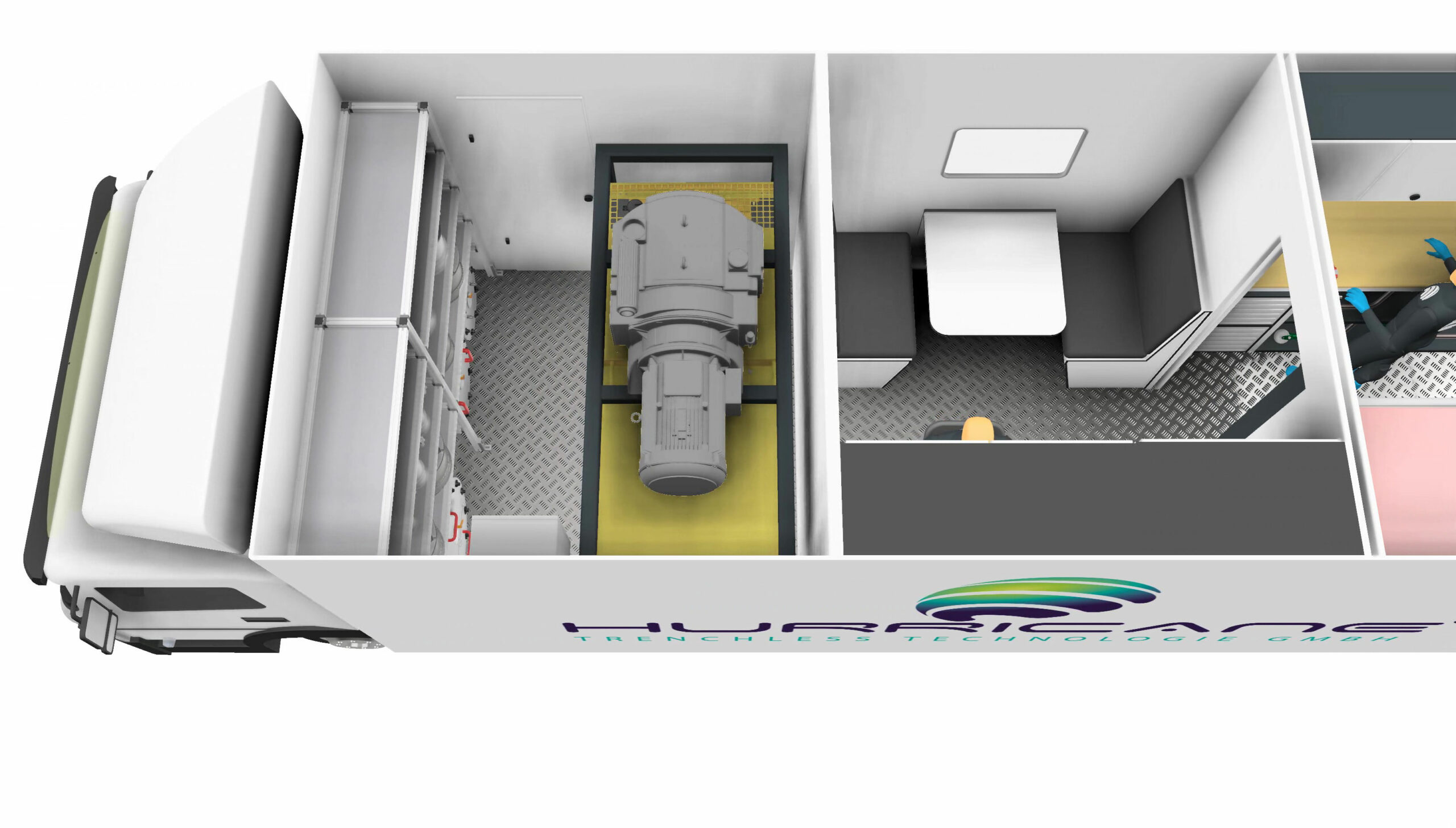

Blower and generator in
stable frame rack
Sound insulation to the
aggregate room

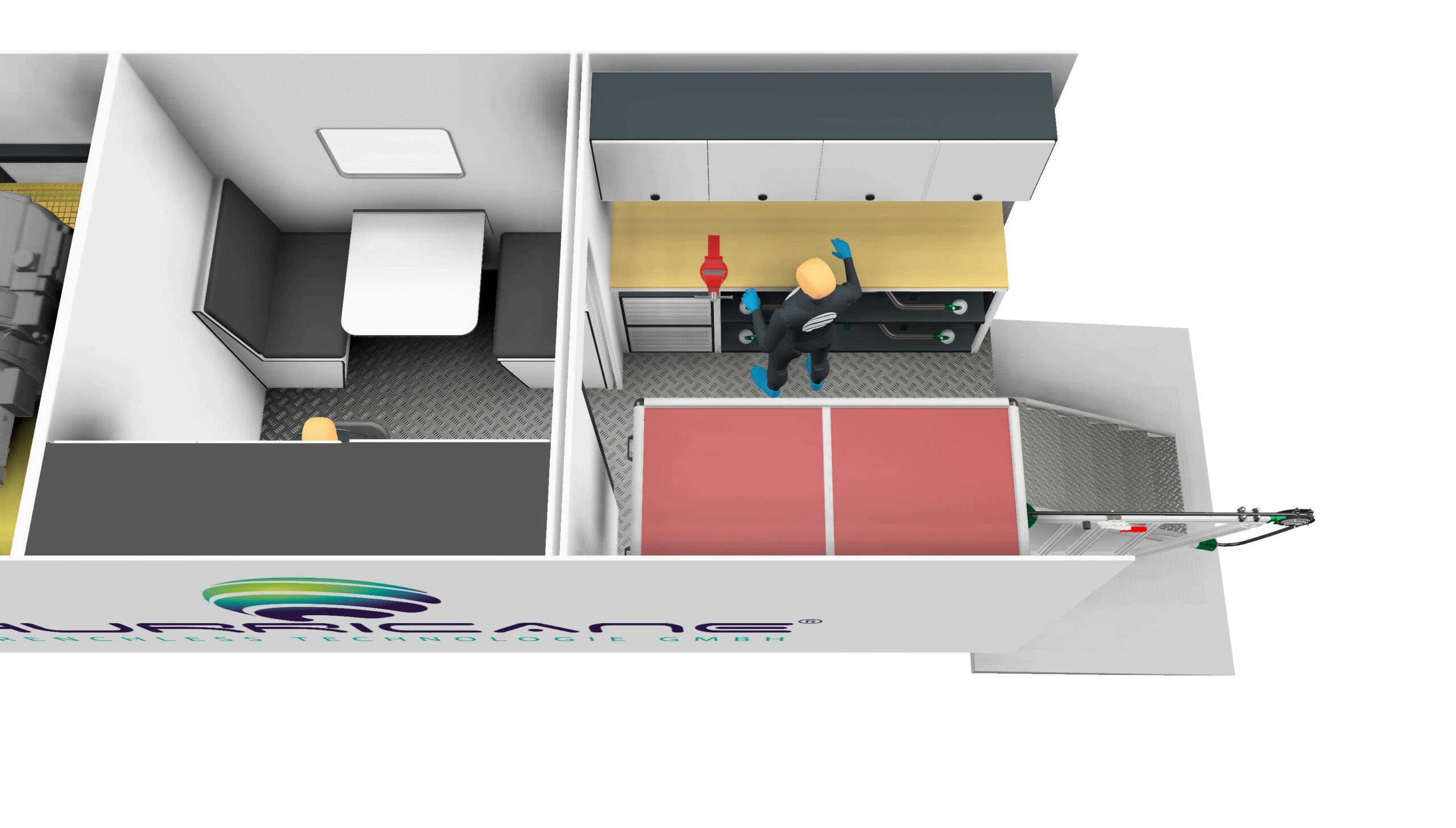

Social area with table Lockable, soundproof door Tail lift with extendable ladder
